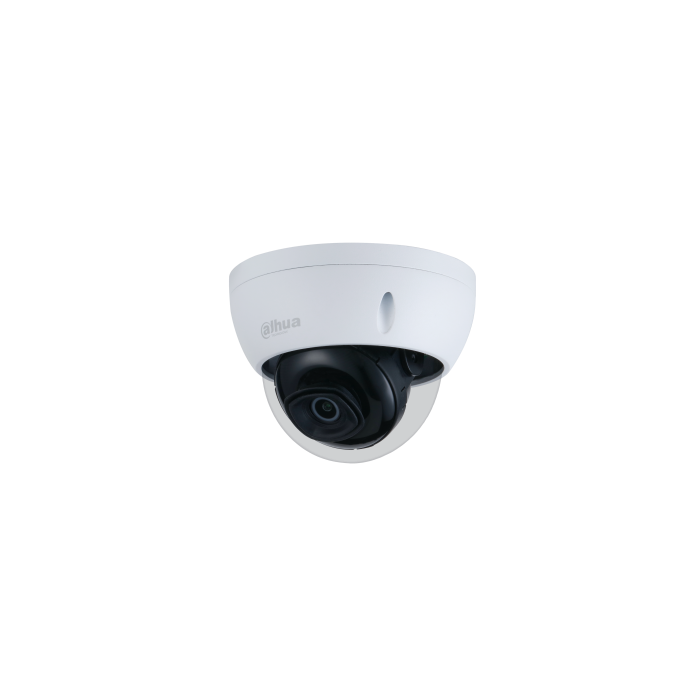

IPC-HDBW3541E-AS-0280B

Camera
Image Sensor - 1/2.7”5Megapixel progressive CMOS
Effective Pixels - 2592 (H) ×1944 (V)
ROM- 128 MB
RAM - 512 MB
Scanning System - Progressive
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100000 s
Min. Illumination - 0.005
IR Distance - 50 m (164.0 ft)
IR On/Off Conrol - Auto/Manual
IR LEDs Number - 3 (IR LEDs)
Pan/Tilt/Rotation Range - Horizontal: 0°–355°; vertical: 0°–65°; rotation: 0°–355°


Lens
Lens Type - Fixed focal
Mount Type - M12
Focal Length - 2.8 mm; 3.6 mm; 6 mm
Max. Aperture - F1.6
Field of View -

2.8 mm: Horizontal: 98°; vertical: 72°; diagonal: 130°
3.6 mm: Horizontal: 80°; vertical: 59° ; diagonal: 106°
6 mm: Horizontal: 50°; vertical: 36°; diagonal: 64°
Iris Type - Fixed aperture
Close Focus Distance -
2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.3 ft)
6 mm: 3.2 m (10.5 ft)
Perimeter Protection
Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression - H.265; H.264; H.264H; H.264B; MJPEG
Smart Codec - Yes
Video Frame Rate -
Main stream (2592 × fps)
(2688 × fps)
sub stream (704 × fps)
third stream (1280 × fps)
Stream Capability - 3 streams
Resolution - 5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control - CBR/VBR
Video Bit Rate -
H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps
Day/Night - Auto(ICR)/Color/B/W
BLC - Yes
HLC - Yes
WDR - 120 dB
White Balance - Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control - Auto/Manual
Noise Reduction - 3D DNR
Motion Detection - OFF/ON (4 areas, rectangular)
Region of Interest(RoI) - Yes (4 areas)
Smart IR - Yes
Image Rotation - 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)
Mirror - Yes
Privacy Masking - 4 areas
Audio
Audio Compression - G.711a; G.711Mu; G726; AAC
Network
Network - RJ-45 (10/100 Base-T)
Protocol - IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;
RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Interoperability - ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
Scene Self-adaptation -Yes
User/Host - 20 (Total bandwidth: 64 M)
Edge Storage - FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
Browser -
IE: IE8, IE9, IE11
Chrome
Firefox
Management Software - Smart PSS, DSS, DMSS
Mobile Phone - IOS; Android
Certification
Certifications - CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input - 1-channel (RCA port)
Audio Output - 1-channel (RCA port)
Alarm Input - 1 channel in: 5mA 3V–5V DC
Alarm Output - 1 channel out: 300mA 12V DC
Power

Power Supply - 12V DC/PoE (802.3af)
Power Consumption <7.3W
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than≤95%
Strorage Conditions -40°C to +60°C (-40°F to +140°F)
Ingress Protection - IP67; IK10
Structure
Casing - Metal + Plastic
Dimensions - 81 mm × Φ109.9 mm (3.2" × Φ4.3")
Net Weight - 378 g (0.8 lb)
Gross Weight - 523 g (1.2 lb)
